Ino Solar Energy pvt. Ltd. is Distributor in India for EnviroECOats. It is a company in the Building Materials industry. Their expertise resides in Process Engineering, Material Performance, Laboratory Testing and Qualification, Code Compliance and Quality Management in a high volume, multiple locations, and manufacturing environment. With access to the most upto-date testing equipment, both founders have the ability to test and validate product quality and performance. In addition, the mission is to provide the Market with high performance, highly competitive, cost effective, and environmentally friendly solutions.
What Is Solar Reflectance?
EnviroECOats color selection is validated to be coatings that reflect the radiation of the sun. Benefits of COOL colors include energy savings, global warming mitigation, reduction of urban heat island effect, and improve occupant comfort.

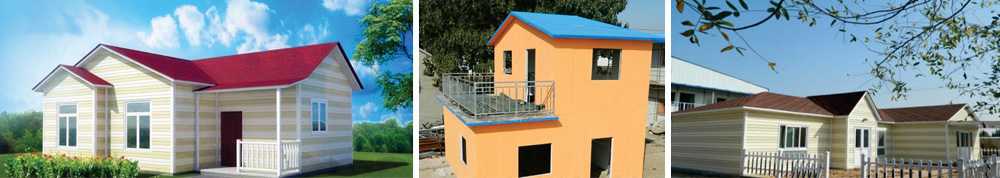

Ready Fab Eco Homes
Steel Structure
Prefab House Specification
| Item | Specification |
|---|---|
| Wind Resistance: | 150KM/H 2 |
| Earthquake Resistance: | Grade 9 |
| Fire Proof: | B Class |
| Roof Bearing Capacity: | 50kg/m2 |
| Temperature resistant: | -20"C--50"C |
| Service Time: 1 | 5 - 20 years Material list |
 |

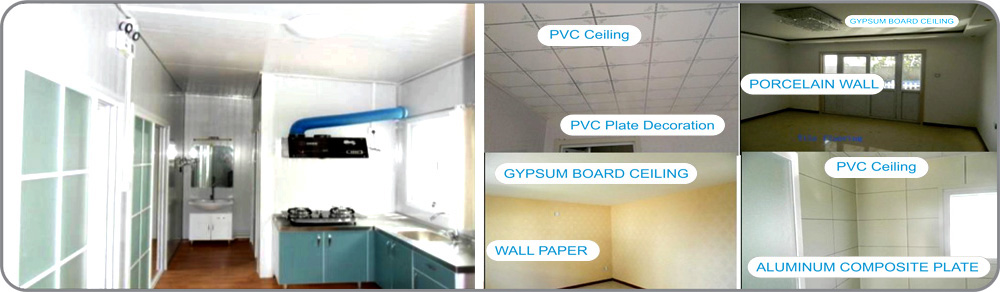

Material Details
Wall panel - EPS Sandwich Panel: Two side is 0.3mm thickness color sheet; Middle core is 75mm thickness EPS panel; Four side is hot galvanizing "U" shape steel channel.
Roof wall - EPS Sandwich corrugated Panel: One side is 0.3mm thickness color sheet, another side is corrugated steel sheet; Middle core is 75mm thickness EPS panel.
Eave - The Eave is made by 1.2mm thickness Steel sheet.
Beam - The beam is welded by U channel hot galvanizing steel (1.5mm thickness) and C channel hot galvanizing steel(1.2mm thickness).
Purline - The purline is welded by C channel hot galvanizing steel or steel square tube (1.3mm 1.8mm thickness)
Door - Steel Security Outside Door, SIP Inside Door, PVC Door, Wood Door.
Window - PVC Window with two layer Glass, Aluminum
Door. Screws, Bolts & Nails - Are made by hot galvanizing steel or other anti -corrosion steel..
